MJ3210B型1070mm左、右式跑車木工帶鋸機
MJ3210B 1070mm Left-right Carriage-woodworking Band Sawing Machine
●主要性能與特點
該跑車木工帶鋸機適用于大、中型木材加工廠和企業制材車間作為主力鋸，作為縱部大規格原木之用，選用多套可組成制材生產流水線。
本機床由帶鋸主機、跑車、地下拖動裝置和紅外線數顯進尺裝置等主要部份組成。其穩定性好，操作方便靈活、安全可靠，加工木材精度高。
●Main function and features
This carriage-woodworking band sawing machine is suitable used in large and middle wood factories as the main equipment.It is used to saw kinds of wood.Choose several sets of the equipment to become processing assembly line.

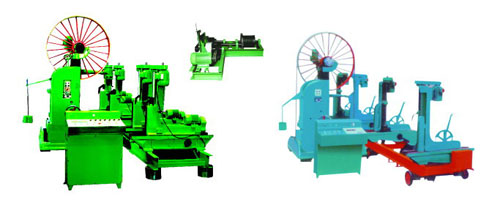

the maichine consists of band saw,carriage,underground driving device and infrared digital footage device,etc.So it is in good stableness,operation is convenient,nimble and reliable.it is high in the accuracy of operation and good in benefit and is a main equipment which can not be short of in the woodworking shop for all kinds of wood factories.
|
參數名稱 |
型號 |
單位 |
MJ3210B型1070mm[42’’]
MJ3210B 1070mm[42’’] |
MJ3212B型1250mm[48’’]
MJ3212B 1250mm[48’’] |
|
鋸輪直徑和寬度
Diameter and width of saw wheel |
mm |
1070x115 |
1250x140 |
|
鋸輪轉速
Rotating speed of saw wheel |
r/min |
800 |
750 |
|
兩鋸輪最大中心距
Max. centre distance between two saw wheels |
mm |
1820 |
2200 |
|
最大可鋸木直徑
Max.diameter of saw-log |
mm |
700 |
900 |
|
最大鋸木長度 |
mm |
8000 |
8000 |
|
主電機功率 |
kw |
30 |
37 |
